High-Temperature Resistance Inconel X750 spiral disc spring for ladle slide gate

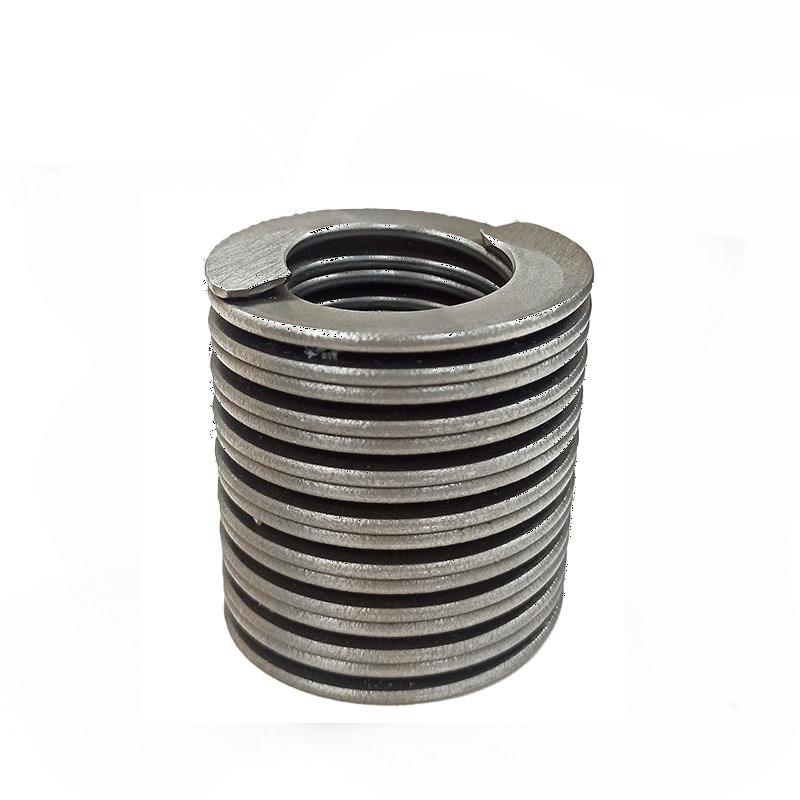

SIMFLEX can offer our customers a proven and tested machine component that in many cases replaces the common multi-layer disc spring assembly. The spiral disc spring consists of 2 identical flat wire compression springs screwed into one another to achieve a cross-section similar to that of disc springs.
The essential advantages:
1. Single component design, avoiding mismatch and friction of individual discs;
2. No erroneous diagram results caused by incorrect layering or grease influence.
3. Uninterrupted grain structure reduces the risk of breakage;
4. Stable spring loads even in case of breakage (no loss of deflection);
5. No friction at the mandrel or sleeve since the stiffness of the spring allows dispensing with any guidance;
6. Simple and cost-saving assembly and maintenance;
The following spiral disc springs/helical disc springs are in stock for fast delivery:
Inconel X-750
O.D: 60 mm; I.D. 35 mm; Free Length: 63 mm;
Operating Temperature: Below 540 degrees.
Inconel X-750
O.D: 80 mm; I.D.: 46 mm; Free Length: 62 mm;
Operating Temperature: Below 540 degrees.
